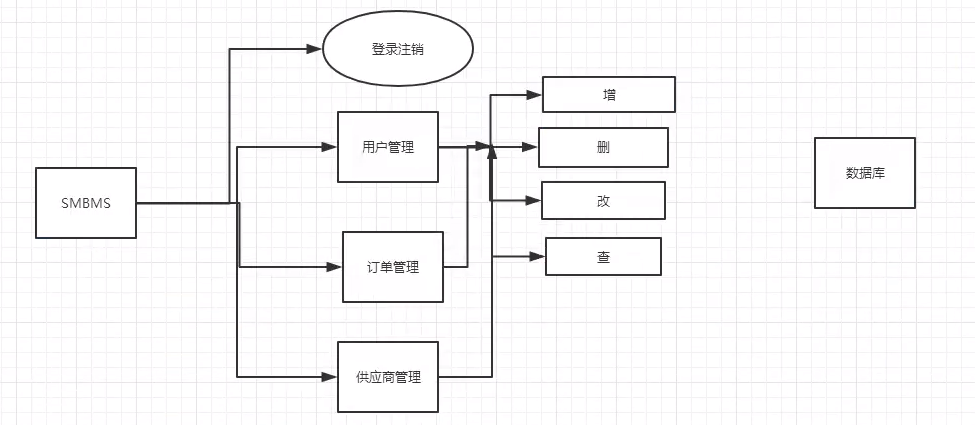

整体框架

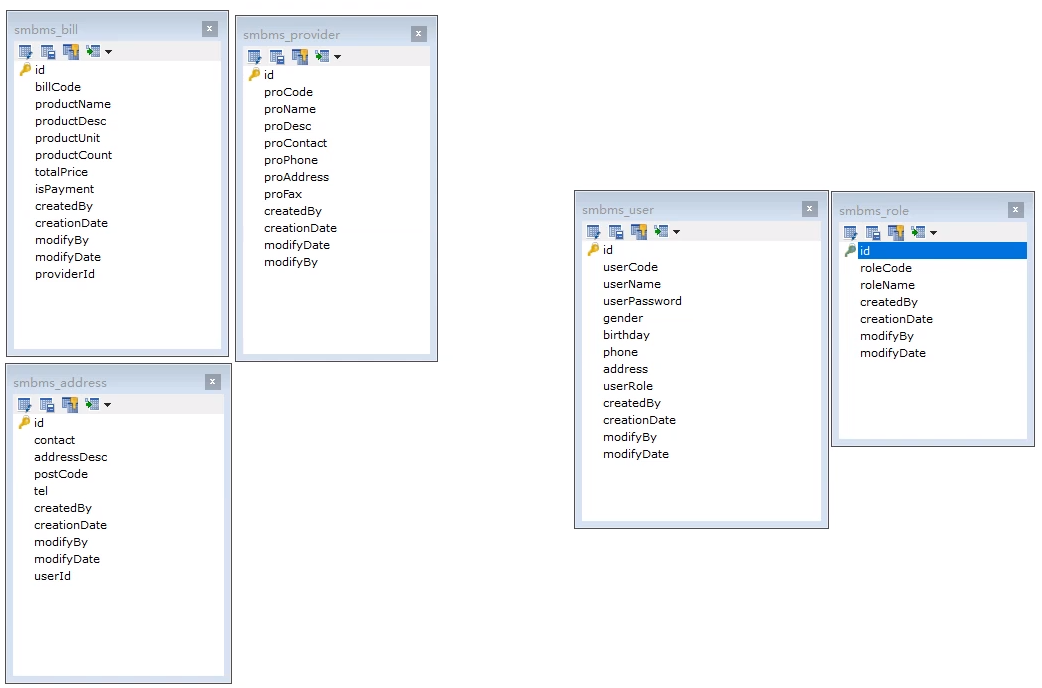

数据库表
项目如何搭建？通过Maven模板创建项目
项目搭建步骤
通过Maven模板搭建项目
配置Tomcat
导包(测试项目是否顺利运行)
1
servlet-api,jsp-api,jstl,standard,mysql-connector-java等
创建项目包结构
编写实体类(ORM映射)
对应数据表中的所有变量，再加上get&set方法
编写基础公共类
数据库配置文件
1
2
3
4driver=com.mysql.jdbc.Driver
url=jdbc:mysql://localhost:3306?useUnicode=true&characterEncoding=utf-8
username=root
password=123456编写数据库公共类BaseDao
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103package com.lan5th.dao;
import java.io.InputStream;
import java.sql.*;
import java.util.Properties;
public class BaseDao {
private static String driver;
private static String url;
private static String username;
private static String password;
//静态代码块
static {
Properties properties = new Properties();
//用流加载配置文件
InputStream in = BaseDao.class.getClassLoader().getResourceAsStream("db.properties");
try {
properties.load(in);
} catch (Exception e){
e.printStackTrace();
}
driver = properties.getProperty("driver");
url = properties.getProperty("url");
username = properties.getProperty("username");
password = properties.getProperty("password");
}
//获取数据库链接
public static Connection getConnection(){
Connection connection = null;
try {
Class.forName(driver);
connection = DriverManager.getConnection(url, username, password);
} catch (Exception e){
e.printStackTrace();
}
return connection;
}
//公共查询方法
public static ResultSet execute(Connection connection, PreparedStatement preparedStatement, ResultSet resultSet, String sql, Object[] params) throws SQLException {
//预编译的sql执行时不需要传参
preparedStatement = connection.prepareStatement(sql);
for (int i = 0; i < params.length; i++){
preparedStatement.setObject(i+1,params[i]);
}
resultSet = preparedStatement.executeQuery();
//返回结果集resultSet
return resultSet;
}
//公共删改方法
public static int execute(Connection connection, PreparedStatement preparedStatement, String sql, Object[] params) throws SQLException {
preparedStatement = connection.prepareStatement(sql);
for (int i = 0; i < params.length; i++){
preparedStatement.setObject(i+1,params[i]);
}
int updateRows = preparedStatement.executeUpdate();
//返回受影响的行数
return updateRows;
}
//回收资源
public static boolean closeResource(Connection connection, PreparedStatement preparedStatement, ResultSet resultSet){
boolean flag = true;
if (resultSet != null){
try {
resultSet.close();
resultSet = null;
} catch (SQLException throwables) {
throwables.printStackTrace();
flag = false;
}
try {
preparedStatement.close();
preparedStatement = null;
} catch (SQLException throwables) {
throwables.printStackTrace();
flag = false;
}
try {
connection.close();
connection = null;
} catch (SQLException throwables) {
throwables.printStackTrace();
flag = false;
}
}
return flag;
}
}编写字符编码过滤器
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20package com.lan5th.filter;
import javax.servlet.*;
import java.io.IOException;
public class CharacterEncodingFilter implements Filter {
public void init(FilterConfig filterConfig) throws ServletException {
}
public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
servletRequest.setCharacterEncoding("utf-8");
servletResponse.setCharacterEncoding("utf-8");
servletResponse.setContentType("text/html;charset=utf-8");
filterChain.doFilter(servletRequest,servletResponse);
}
public void destroy() {
}
}
导入静态资源
创建数据表
1 | CREATE TABLE `smbms_address` ( |

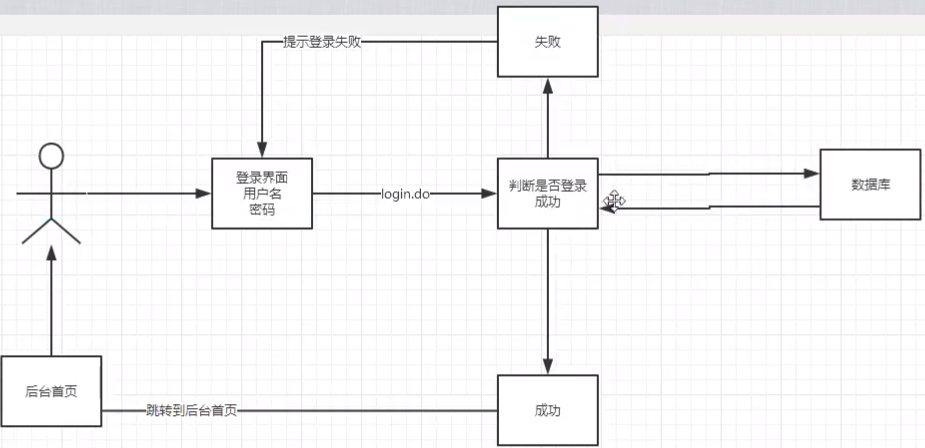

登录过程实现
编写前端页面
设置首页
1
2
3
4<!--设置欢迎页-->
<welcome-file-list>
<welcome-file>login.jsp</welcome-file>
</welcome-file-list>编写dao层用户登陆的接口UserDao
1
2
3public interface UserDao {
public User getLoginUser(Connection connection,String userCode);
}l编写dao接口实现类UserDaoImpl
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38public class UserDaoImpl implements UserDao {
public User getLoginUser(Connection connection, String userCode) {
PreparedStatement ppst = null;
ResultSet rs = null;
User user = null;
if (connection!=null){
//编写sql
String sql = "select * from smbms_user where userCode=?";
Object[] params = {userCode};
R
try {
//公共类BaseDao的execute方法返回ResultSet对象
rs = BaseDao.execute(connection, ppst, rs, sql, params);
if (rs.next()){
user = new User();
user.setId(rs.getInt("id"));
user.setUserCode(rs.getString("userCode"));
user.setUserName(rs.getString("userName"));
user.setUserPassword(rs.getString("userPassword"));
user.setGender(rs.getInt("gender"));
user.setBirthday(rs.getDate("birthday"));
user.setPhone(rs.getString("phone"));
user.setAddress(rs.getString("address"));
user.setUserRole(rs.getInt("userRole"));
user.setCreatedBy(rs.getInt("createdBy"));
user.setCreationDate(rs.getDate("creationDate"));
user.setModifyBy(rs.getInt("modifyBy"));
user.setModifyDate(rs.getTimestamp("modifyDate"));
}
BaseDao.closeResource(null,ppst,rs);
} catch (SQLException throwables) {
throwables.printStackTrace();
}
}
return user;
}
}业务层接口UserService
1
2
3public interface UserService {
public User login(String userCode, String password);
}业务层实现类UserServiceImpl
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33public class UserServiceImpl implements UserService {
private UserDao userDao;
//在构造方法中实例化UserDao对象
public UserServiceImpl() {
userDao = new UserDaoImpl();
}
public User login(String userCode, String password) {
Connection connection = null;
User user = null;
try {
connection = BaseDao.getConnection();
//由用户码查询用户记录对象
user = userDao.getLoginUser(connection, userCode);
} catch (Exception e) {
return null;
} finally {
BaseDao.closeResource(connection, null, null);
}
//若不为空，则检查用户码和密码是否相匹配
if (user!=null){
if (user.getUserCode().equals(userCode)) {
if (user.getUserPassword().equals(password)) {
return user;
}
}
}
//为空则直接返回null
return null;
}
}编写servlet层LoginServlet
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27public class LoginServlet extends HttpServlet {
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
String userCode = req.getParameter("userCode");
String userPassword = req.getParameter("userPassword");
//由业务层进行用户名和密码比对
UserServiceImpl userService = new UserServiceImpl();
User user = userService.login(userCode, userPassword);
if (user!=null){
//跳转主页，生成session
req.getSession().setAttribute(Constants.USER_SESSION,user);
req.getRequestDispatcher("jsp/userPage.jsp").forward(req, resp);
}else {
//跳转回登陆页面，并展示提示信息
req.setAttribute("error","用户名或密码不正确");
req.getRequestDispatcher("login.jsp").forward(req,resp);
}
}
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
doGet(req, resp);
}
}注册servlet
1
2
3
4
5
6
7
8<servlet>
<servlet-name>LoginServlet</servlet-name>
<servlet-class>com.lan5th.servlet.LoginServlet</servlet-class>
</servlet>
<servlet-mapping>
<servlet-name>LoginServlet</servlet-name>
<url-pattern>/login.do</url-pattern>
</servlet-mapping>测试访问，确保以上功能成功
登录功能优化
注销功能：编写LogoutServlet移除Session
1
req.getSession().removeAttribute(Constants.USER_SESSION);
登录拦截器：过滤器
编写过滤器
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22public class SysFilter implements Filter {
public void init(FilterConfig filterConfig) throws ServletException {
}
public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
HttpServletRequest request = (HttpServletRequest) servletRequest;
HttpServletResponse response = (HttpServletResponse) servletResponse;
User user = (User) request.getSession().getAttribute(Constants.USER_SESSION);
if(user == null){
response.sendRedirect(request.getContextPath()+"/login.jsp");
}else {
filterChain.doFilter(request,response);
}
}
public void destroy() {
}
}注册过滤器

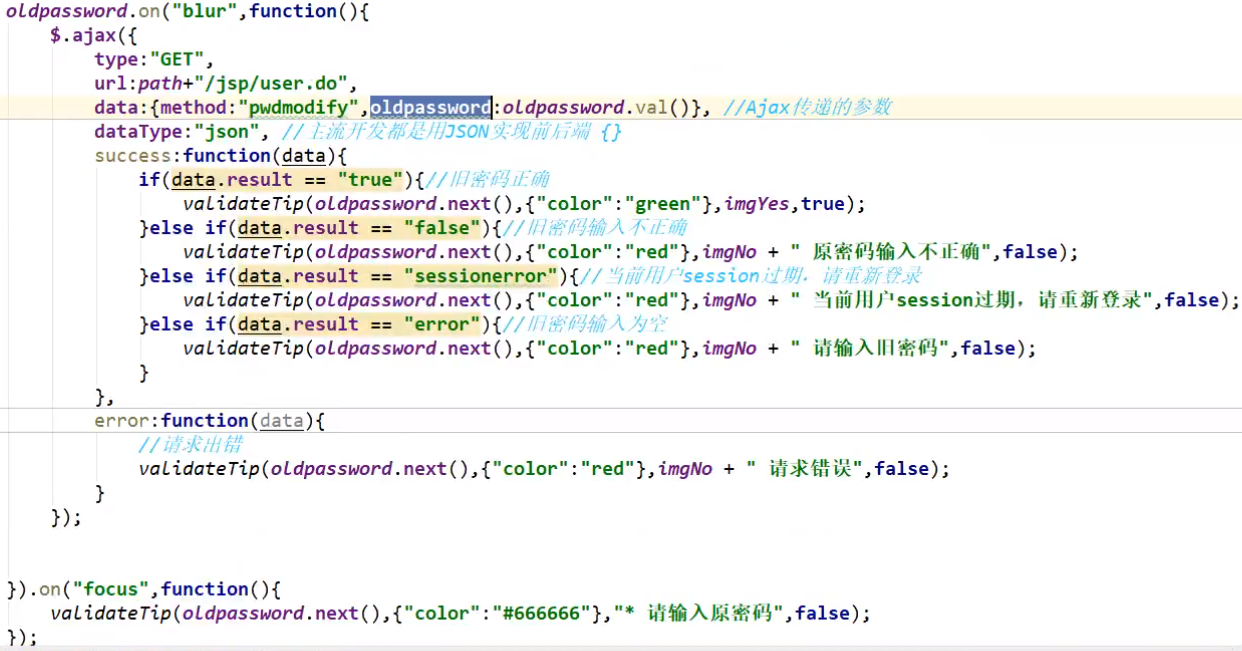

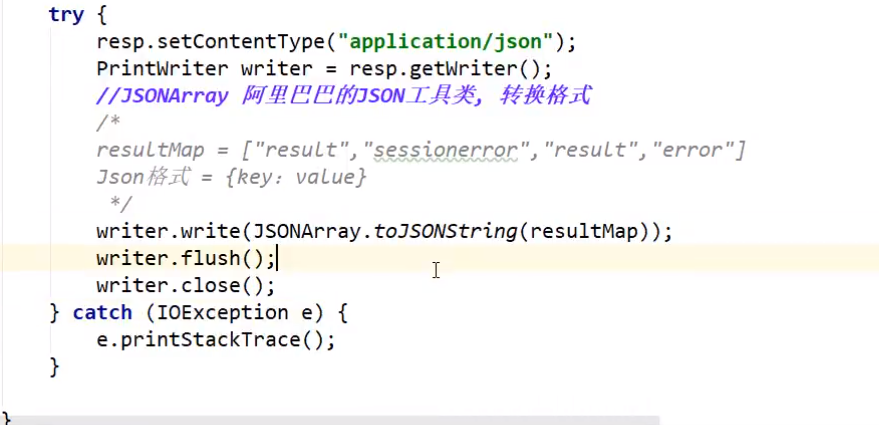

修改密码功能实现
编写页面
扩充UserDao接口
1
public int pwdModify(Connection connection, int userCode, String pwd);
扩充UserDao实现类UserDaoImpl
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18public int pwdModify(Connection connection, int id, String pwd) {
PreparedStatement ppst = null;
User user = null;
int flag = 0;
if (connection!=null){
String sql = "update smbms_user set userPassword=? where id=?";
Object[] params = {pwd,id};
try {
flag = BaseDao.execute(connection, ppst, sql, params);
BaseDao.closeResource(null,ppst,null);
} catch (SQLException throwables) {
throwables.printStackTrace();
}
}
return flag;
}扩充UserService接口
1
public boolean pwdModify(int id, String password);
扩充UserService实现类UserServiceImpl
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18public boolean pwdModify(int id, String password) {
Connection connection = null;
boolean flag = false;
//修改密码
try {
connection = BaseDao.getConnection();
if (userDao.pwdModify(connection, id, password) > 0) {
flag = true;
}
} catch (Exception e) {
e.printStackTrace();
} finally {
BaseDao.closeResource(connection, null, null);
}
return flag;
}实现Userservlet复用
通过前端传入method属性值来判断执行的方法
1
2
3<form method="post" action="${pageContext.request.contextPath}/user.do">
<input type="hidden" name="method" value="modifyPwd">
</form>1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36public class UserServlet extends HttpServlet {
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
String method = req.getParameter("method");
if (method.equals("modifyPwd")&&method!=null){
this.modifyPwd(req,resp);
}
}
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
doGet(req, resp);
}
protected boolean modifyPwd(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
Object o = req.getSession().getAttribute(Constants.USER_SESSION);
String newPassword = req.getParameter("newPassword");
boolean flag = false;
if (o!=null&& !StringUtils.isNullOrEmpty(newPassword)){
UserServiceImpl userService = new UserServiceImpl();
flag = userService.pwdModify(((User) o).getId(), newPassword);
if (flag){
req.setAttribute("message", "密码修改成功");
//密码修改成功，移除Session
req.getSession().removeAttribute(Constants.USER_SESSION);
req.getRequestDispatcher("/error.jsp").forward(req,resp);
return flag;
}
}
req.setAttribute("message", "密码修改失败，请检查输入");
req.getRequestDispatcher("/jsp/pwdModify.jsp").forward(req,resp);
return flag;
}
}利用ajax实现动态请求
在UserServlet中实现动态请求的响应
用户管理功能
因完成该功能需要前端js支持，暂时不给予实现，只给出关键代码
添加分页支持PageSupport
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55public class PageSupport {
private int currentPageNo = 1;
private int totalCount = 0;
private int pageSize = 0;
private int totalPageCount = 1;
public int getCurrentPageNo() {
return currentPageNo;
}
public void setCurrentPageNo(int currentPageNo) {
if (currentPageNo > 0){
this.currentPageNo = currentPageNo;
}
}
public int getTotalCount() {
return totalCount;
}
public void setTotalCount(int totalCount) {
if(totalCount > 0){
this.totalCount = totalCount;
this.setTotalPageCountByRs();
}
}
public int getPageSize() {
return pageSize;
}
public void setPageSize(int pageSize) {
if (pageSize > 0){
this.pageSize = pageSize;
}
}
public int getTotalPageCount() {
return totalPageCount;
}
public void setTotalPageCount(int totalPageCount) {
this.totalPageCount = totalPageCount;
}
public void setTotalPageCountByRs(){
if (this.totalCount % this.pageSize == 0){
this.totalPageCount = this.totalCount / this.pageSize;
}else if (this.totalCount % this.pageSize > 0){
this.totalPageCount = this.totalCount % this.pageSize + 1;
}else {
this.totalPageCount = 0;
}
}
}扩充UserDaoImpl层
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79//获取展示的数据条数
public int getUserCount(Connection connection, String username, int userRole) throws SQLException {
PreparedStatement ppst = null;
ResultSet rs = null;
int count = 0;
if (connection!=null){
StringBuffer sql = new StringBuffer();
sql.append("select count(1) from smbms_user u,smbms_role r where u.userRole = r.id");
ArrayList list = new ArrayList();
//选择用户名添加限制条件
if (!StringUtils.isNullOrEmpty(username)){
sql.append(" and u.username like ?");
//模糊查询前后加百分号
list.add("%"+username+"%");
}
//选择用户角色添加限制条件
if (userRole>0){
sql.append(" and u.userRole = ?");
list.add(userRole);
}
//将list转换为数组
Object[] params = list.toArray();
BaseDao.execute(connection,ppst,sql.toString(),params);
if (rs.next()){
count = rs.getInt("count");
}
}
return count;
}
//获取用户列表
public List<User> getUserList(Connection connection, String username, int userRole, int currentPageNo, int pageSize) throws SQLException {
PreparedStatement ppst = null;
ResultSet rs = null;
List<User> userList = new ArrayList<User>();
if (connection!=null){
StringBuffer sql = new StringBuffer();
sql.append("select count(1) from smbms_user u,smbms_role r where u.userRole = r.id");
ArrayList list = new ArrayList();
//选择用户名添加限制条件
if (!StringUtils.isNullOrEmpty(username)){
sql.append(" and u.username like ?");
//模糊查询前后加百分号
list.add("%"+username+"%");
}
//选择用户角色添加限制条件
if (userRole>0){
sql.append(" and u.userRole = ?");
list.add(userRole);
}
//利用SQL查询的limit实现分页
sql.append(" order by creationDate DESC limit ?,?");
currentPageNo = (currentPageNo-1)*pageSize;
list.add(currentPageNo);
list.add(pageSize);
//将list转换为数组
Object[] params = list.toArray();
rs = BaseDao.execute(connection,ppst,rs,sql.toString(),params);
while (rs.next()){
User user = new User();
user.setId(rs.getInt("id"));
user.setUserCode(rs.getString("userCode"));
user.setUserName(rs.getString("userName"));
user.setGender(rs.getInt("gender"));
user.setBirthday(rs.getDate("birthday"));
user.setPhone(rs.getString("phone"));
user.setUserRole(rs.getInt("userRole"));
userList.add(user);
}
BaseDao.closeResource(null,ppst,rs);
}
return userList;
}扩充UserServiceImpl层
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27public int getUserCount(String username, int userRole) {
Connection connection = null;
int count = 0;
try{
connection = BaseDao.getConnection();
count = userDao.getUserCount(connection, username, userRole);
} catch (SQLException throwables) {
throwables.printStackTrace();
} finally {
BaseDao.closeResource(connection,null,null);
}
return count;
}
public List<User> getUserList(String username, int userRole, int currentPageNo, int pageSize) {
Connection connection = null;
List<User> userList = null;
try{
connection = BaseDao.getConnection();
userList = userDao.getUserList(connection, username, userRole, currentPageNo,pageSize);
} catch (SQLException throwables) {
throwables.printStackTrace();
} finally {
BaseDao.closeResource(connection,null,null);
}
return userList;
}编写RoleDaoImpl层
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23public class RoleDaoImpl implements RoleDao{
public List<Role> getRoleList(Connection connection) throws SQLException {
PreparedStatement ppst = null;
ResultSet rs = null;
ArrayList<Role> roleList = new ArrayList<Role>();
if(connection!= null){
String sql = "select * from smbms_role";
Object[] params = {};
rs = BaseDao.execute(connection,ppst,rs,sql,params);
while (rs.next()){
Role role = new Role();
role.setId(rs.getInt("id"));
role.setRoleCode(rs.getString("roleCode"));
role.setRoleName(rs.getString("roleName"));
roleList.add(role);
}
BaseDao.closeResource(null,ppst,rs);
}
return roleList;
}
}编写RoleServiceImpl层
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19public class RoleServiceImpl implements RoleService{
private RoleDao roleDao;
public RoleServiceImpl(){
roleDao = new RoleDaoImpl();
}
public List<Role> getRoleList() {
Connection connection = null;
List<Role> roleList = null;
try {
connection = BaseDao.getConnection();
roleList = roleDao.getRoleList(connection);
} catch (SQLException throwables) {
throwables.printStackTrace();
} finally {
BaseDao.closeResource(connection,null,null);
}
return roleList;
}
}扩充UserServlet(重点)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56protected void query(HttpServletRequest req, HttpServletResponse resp){
//获取前端数据
String queryUserName = req.getParameter("queryName");
String temp = req.getParameter("queryUserRole");
String pageIndex = req.getParameter("pageIndex");
int queryUserRole = 0;
//获取用户列表
UserServiceImpl userService = new UserServiceImpl();
int pageSize = 5;
int currentPageNo = 1;
if (queryUserName == null){
queryUserName="";
}
if (temp != null&&!temp.equals("")){
//字符串转int
queryUserRole = Integer.parseInt(temp);
}
if (queryUserName == null){
currentPageNo = Integer.parseInt(pageIndex);
}
int totalCount = userService.getUserCount(queryUserName, queryUserRole);
PageSupport pageSupport = new PageSupport();
pageSupport.setCurrentPageNo(currentPageNo);
pageSupport.setPageSize(pageSize);
pageSupport.setTotalCount(totalCount);
int totalPageCount = pageSupport.getTotalCount();
if (currentPageNo<1){
currentPageNo = 1;
}else if (currentPageNo>totalPageCount){
currentPageNo=totalPageCount;
}
List<User> userList = userService.getUserList(queryUserName, queryUserRole, currentPageNo, pageSize);
req.setAttribute("userList",userList);
RoleServiceImpl roleService = new RoleServiceImpl();
List<Role> roleList = roleService.getRoleList();
req.setAttribute("roleList",roleList);
req.setAttribute("totalCount",totalCount);
req.setAttribute("currentPageNo",currentPageNo);
try{
req.getRequestDispatcher("userList.jsp").forward(req,resp);
} catch (ServletException e) {
e.printStackTrace();
} catch (IOException e) {
e.printStackTrace();
}
}
供应商管理，订单管理等功能实现与用户管理类似，不再重复给出类似代码，读者可自己增加相应练习，巩固基础。
本篇JavaWeb实战到此完结
